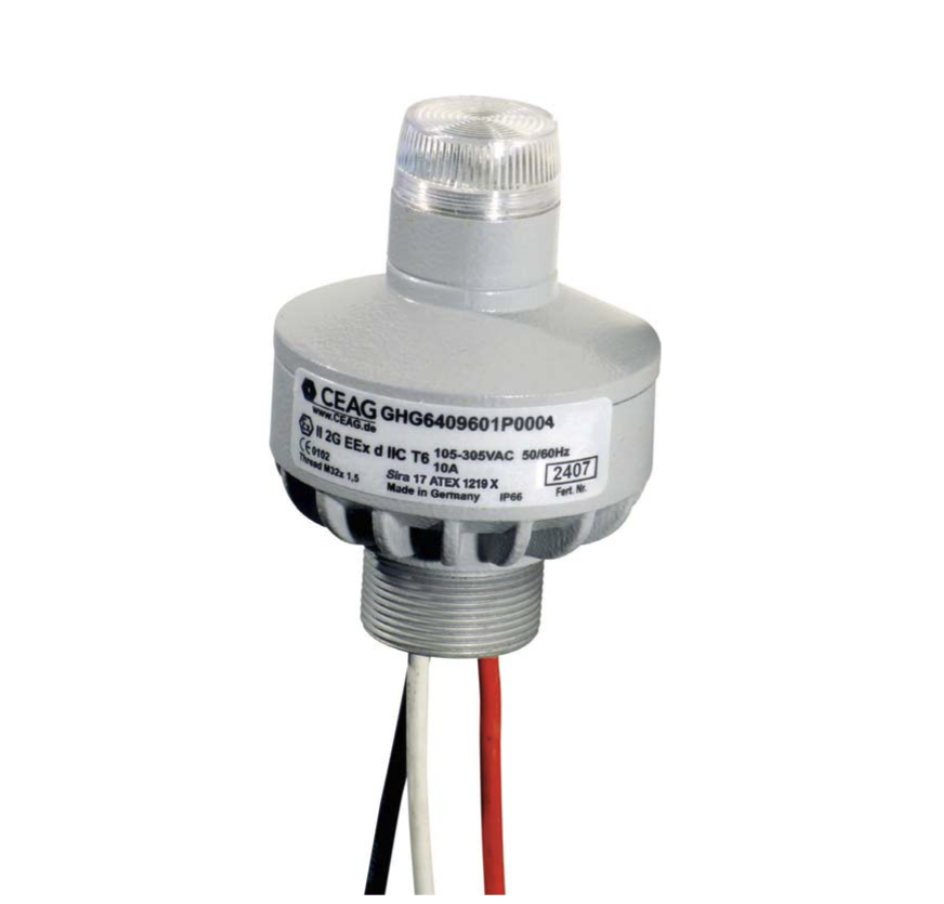

GHG6409601P0004 CEAG Ex-Twilight Switch 防爆光控开关

Certifications:
Marking accd. to 2014/34/EU II 2 G Ex Ex db eb IIC T5 Gb
EC-Type Examination Certificate terminal box GHG 721:
GHG 74:
BVS 13 ATEX E 013 X
BVS 12 ATEX E 118 X
EC-Type Examination Certificate twilight switch PTB 06 ATEX 1017 X
Permissible ambient temperature -40°C to +55°C
IECEx Certificate of Conformity terminal box GHG 721:
GHG 74:
IECEx BVS 13.0031X
IECEx BVS 12.0071X
Marking accd. to IECEx Ex db eb IIC T5 Gb
Rated voltage 105 - 305 V 50/60 Hz
Rated current max. 10 A
Protection class I
Rated switching capacity 1800 VA
Light sensitivity 4 - 11 lux, 7 - 12 lux, 10 - 15 lux, adjustable, lower value “ON”, upper value “OFF”
Degree of protection accd. to EN 60529 IP66
Enclosure material glass-fibre reinforced polyester (GHG 721 00) or stainless steel (GHG 744 21)
Enclosure colour black or polished
