EABX36ATEX EABY16ATEX Explosionproof Conduit Outlet Box ATEX 认证防爆接线盒

品牌： EATON CROUSE-HINDS
型号: EABY16 ATEX EABX26 ATEX EABX16 ATEX EABX36 DIN16 ATEX EABX16 DIN16 ATEX EABX326 ATEX DR1299538 EABX36 ATEX EABX26 DIN16 ATEX EABX16 DIN16 ATEX CONKIT EABX26 SA ATEX EABX16 SA ATEX EABX36 SA ATEX S752 EABX326 SA ATEX DR1299538 EABX16 SA DIN16 ATEX EABX26 SA S752 DIN16 ATEX EABX36 SA DIN16 ATEX EABX26 SA DIN16 ATEX EABX36 SA ATEX

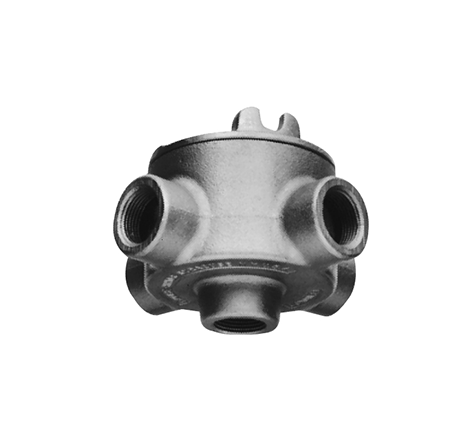

产品说明: CROUSE-HINDS Condulet EAB and EAJ Explosionproof Conduit Outlet Box
Crouse-Hinds series EAB and EAJ explosionproof conduit outlet boxes are installed in conduit systems in hazardous areas to protect conductors in threaded rigid conduit, act as pull and splice boxes, change conduit direction, and provide access to conductors for maintenance and future system changes. EAB and EAJ outlet boxes are manufactured in five different hub configurations with mounting feet and 16 pitch cover threads.
Available in 1/2", 3/4" and 1" trade sizes with a 3" diameter cover opening, EAB and EAJ outlet boxes are certified for Class I, Division 1, Groups A, B, C, D and Class II, Division 1, Groups E, F, G. The EAB series is also available with ATEX certifications for IEC applications.
EATON/CROUSE-HINDS/COOPER/CEAG/MEDC - 总代理-昆山倍源电气有限公司

分享到:

立即咨询

产品详情
产品手册

CROUSE-HINDS Condulet EAB and EAJ Explosionproof Conduit Outlet Box
Certifications :
NEC/CEC:
Class I, Divisions 1 & 2, Groups A, B, C, D
Class II, Division 1, Groups E, F, G
Class II, Division 2, Groups F, G
Class III
• II 2 G EEx d IIC T5
• PTB 05 ATEX 1052
• Enclosure Type 4, IP66
NEMA 3, 4, 7ABCD, 9EFG
UL standard:UL1203
CSA standard:C22.2 No. 30
Standard materials
Bodies – Feraloy iron alloy (standard); or copper-free aluminum (optional)
Covers – copper-free aluminum (standard); or Feraloy iron alloy (optional)
EATON/CROUSE-HINDS/COOPER/CEAG/MEDC- 总代理-Kunshan Beiyuan Electric Co.,Ltd
经销：APPLETON,KILLARK,BARTEC,R.STAHL,RITTAL,HAWKE,CMP,CCG CABLE GLAND
Crouse-Hinds Condulet EAB Explosionproof Conduit Outlet Box Order No.:

EABY16 ATEX	EABT26 AMA	EABC26	EABX36	EABL26
EABX26 ATEX	EABT36 WOD	EABC26 TB14	EABX360	EABL16 WOD
EABX16 ATEX	EABT26	EABC16	EABX36 TB16	EABL16
EABX36 DIN16 ATEX	EABT26 DIN13	EABC16 DIN16	EABX26	EABL36 TB14
EABX16 DIN16 ATEX	EABT16 TB16	EABC36	EABX16	EABL36
EABX326 ATEX DR1299538	EABT36 DIN14	EABC16 SA	EABX36 WOD	EABL26 SA
EABX36 ATEX	EABT26 TB16	EABC26 SA	EABX26 DIN16	EABL16 SA
EABX26 DIN16 ATEX	EABT26 WOD	EABC36 SA	EABX16 SA	EABL26 SA S752
EABX16 DIN16 ATEX CONKIT	EABT16		EABX26 SA TB16	EABL36 SA
EABX26 SA ATEX	EABT36	EABY16	EABX26 SA PS
EABX16 SA ATEX	EABT26 DIN14	EABY26	EABX26 SA
EABX36 SA ATEX S752	EABT16 SA		EABX36 SA
EABX326 SA ATEX DR1299538	EABT36 SA S752
EABX16 SA DIN16 ATEX	EABT36 SA TB16
EABX26 SA S752 DIN16 ATEX	EABT26 SA
EABX36 SA DIN16 ATEX	EABT36 SA
EABX26 SA DIN16 ATEX
EABX36 SA ATEX
