EABT26 EABC26 EABL26 EABX26 EABY26 Explosionproof Conduit Outlet Box UL 认证防爆接线盒

品牌： EATON CROUSE-HINDS
型号: EABT26 AMA EABT36 WOD EABT26 EABT26 DIN13 EABT16 TB16 EABT36 DIN14 EABT26 TB16 EABT26 WOD EABT16 EABT36 EABT26 DIN14 EABT16 SA EABT36 SA S752 EABT36 SA TB16 EABT26 SA EABT36 SA EABC26 EABC26 TB14 EABC16 EABC16 DIN16 EABC36 EABC16 SA EABC26 SA EABC36 SA EABY16 EABY26 EABX36 EABX360 EABX36 TB16 EABX26 EABX16 EABX36 WOD EABX26 DIN16 EABX16 SA EABX26 SA TB16 EABX26 SA PS EABX26 SA EABX36 SA EABL26 EABL16 WOD EABL16 EABL36 TB14 EABL36 EABL26 SA EABL16 SA EABL26 SA S752 EABL36 SA
产品说明: CROUSE-HINDS Condulet EAB and EAJ Explosionproof Conduit Outlet Box

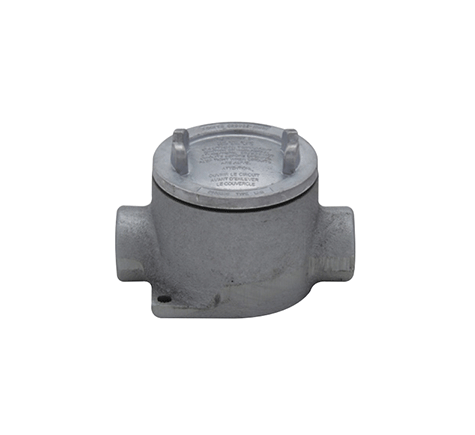

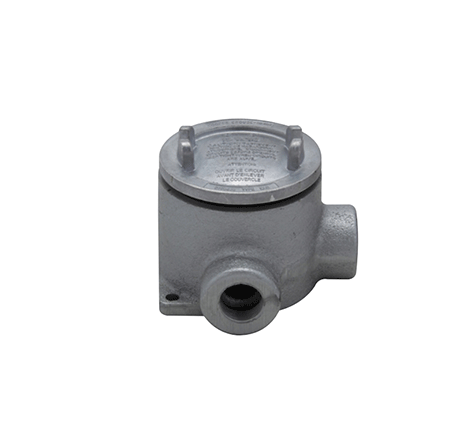

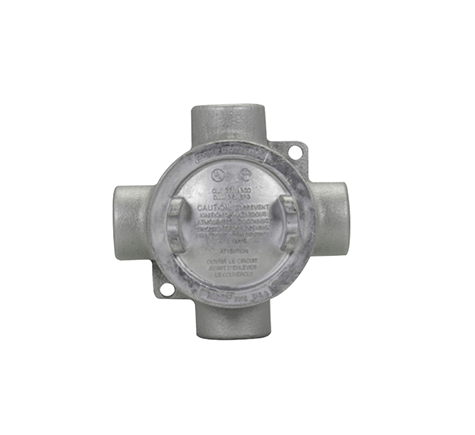

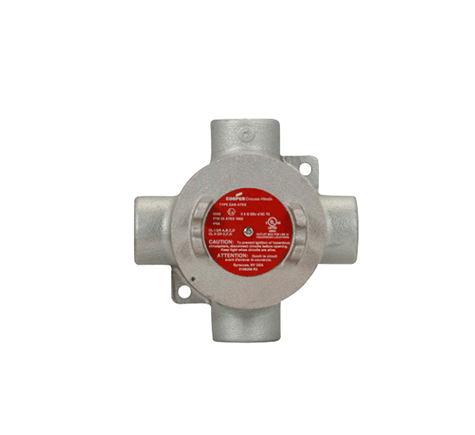

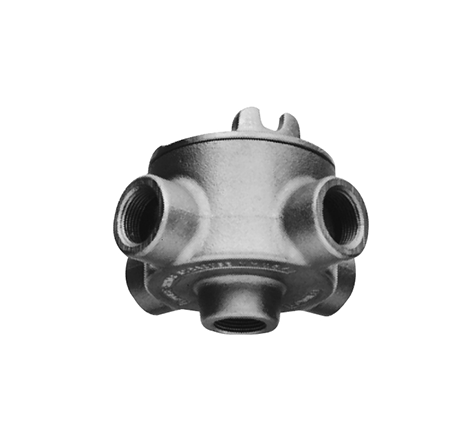

Crouse-Hinds series EAB and EAJ explosionproof conduit outlet boxes are installed in conduit systems in hazardous areas to protect conductors in threaded rigid conduit, act as pull and splice boxes, change conduit direction, and provide access to conductors for maintenance and future system changes. EAB and EAJ outlet boxes are manufactured in five different hub configurations with mounting feet and 16 pitch cover threads.
Available in 1/2", 3/4" and 1" trade sizes with a 3" diameter cover opening, EAB and EAJ outlet boxes are certified for Class I, Division 1, Groups A, B, C, D and Class II, Division 1, Groups E, F, G. The EAB series is also available with ATEX certifications for IEC applications.
EATON/CROUSE-HINDS/COOPER/CEAG/MEDC - 总代理-昆山倍源电气有限公司

分享到:

立即咨询

产品详情
产品手册

CROUSE-HINDS Condulet EAB and EAJ Explosionproof Conduit Outlet Box
Certifications :
NEC/CEC:
Class I, Divisions 1 & 2, Groups A, B, C, D
Class II, Division 1, Groups E, F, G
Class II, Division 2, Groups F, G
Class III
NEMA 3, 4, 7ABCD, 9EFG
UL standard:UL1203
CSA standard:C22.2 No. 30
Standard materials
Bodies – Feraloy iron alloy (standard); or copper-free aluminum (optional)
Covers – copper-free aluminum (standard); or Feraloy iron alloy (optional)
EATON/CROUSE-HINDS/COOPER/CEAG/MEDC- 总代理-Kunshan Beiyuan Electric Co.,Ltd
经销：APPLETON,KILLARK,BARTEC,R.STAHL,RITTAL,HAWKE,CMP,CCG CABLE GLAND
Crouse-Hinds Condulet EAB Explosionproof Conduit Outlet Box Order No.:

EABT26 AMA	EABC26	EABX36	EABL26	EABY16 ATEX
EABT36 WOD	EABC26 TB14	EABX360	EABL16 WOD	EABX26 ATEX
EABT26	EABC16	EABX36 TB16	EABL16	EABX16 ATEX
EABT26 DIN13	EABC16 DIN16	EABX26	EABL36 TB14	EABX36 DIN16 ATEX
EABT16 TB16	EABC36	EABX16	EABL36	EABX16 DIN16 ATEX
EABT36 DIN14	EABC16 SA	EABX36 WOD	EABL26 SA	EABX326 ATEX DR1299538
EABT26 TB16	EABC26 SA	EABX26 DIN16	EABL16 SA	EABX36 ATEX
EABT26 WOD	EABC36 SA	EABX16 SA	EABL26 SA S752	EABX26 DIN16 ATEX
EABT16		EABX26 SA TB16	EABL36 SA	EABX16 DIN16 ATEX CONKIT
EABT36	EABY16	EABX26 SA PS		EABX26 SA ATEX
EABT26 DIN14	EABY26	EABX26 SA		EABX16 SA ATEX
EABT16 SA		EABX36 SA		EABX36 SA ATEX S752
EABT36 SA S752				EABX326 SA ATEX DR1299538
EABT36 SA TB16				EABX16 SA DIN16 ATEX
EABT26 SA				EABX26 SA S752 DIN16 ATEX
EABT36 SA				EABX36 SA DIN16 ATEX
				EABX26 SA DIN16 ATEX
				EABX36 SA ATEX
