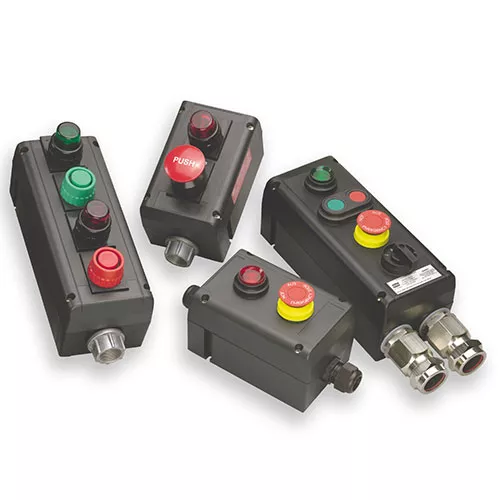

CEAG GHG4320011R0003 Ex-Control Stations 防爆操作柱

品牌： EATON CROUSE-HINDS CEAG
型号: GHG4320011R0001 GHG4320011R0003 GHG4320011R0002 GHG4320001R0005 GHG4320001R0015 GHG4320011R0005 GHG4320001R0004 GHG4320001R0006 GHG4320011R0009 GHG4320001R0014 GHG4320011R0006 GHG4320001R0003 GHG4320001R0012 GHG4320001R0013 GHG4320001R0016 GHG4320001R0017 GHG4320001R0018 GHG4320001R0019 GHG4320001R0020 GHG4320011R0008
产品说明: CEAG GHG43 explosion protected control stations from Eaton's Crouse-Hinds Division meet worldwide electrical codes and standards, providing a single product line that can be used in applications around the world. Available in glass-reinforced polyester, GHG43 control stations are used for remote motor control, visual indication of equipment performance, on-off control of circuits, and circuit selection.
Kunshan Beiyuan Electric Co.,Ltd - Eaton Crouse-Hinds Series Authorized Distributor

分享到:

立即咨询

产品详情
产品手册

Certifications
UL/cUL Listed
Class I, Division 2, Groups A, B, C, D
Class II, Division 1, Groups E, F, G (cUL)
Class I, Zones 1 & 2, Ex de IIB + H2, T6
AEx de IIB + H2, T6
Type 3, 4, 4X; IP66
CENELEC-PTB 00 ATEX 3117
Ex de IIC, T6, Zones 1 & 2, IP66
ATEX : BVS 22 ATEX E 032 X
IECEx : IECEx BVS 22.0029X
Design features
NEMA 4X, IP66 enclosure with formed-in-place gasket
Available with all operators: indicator lights, potentiometers, control switches, pushbuttons, terminal blocks and meters
Base-mounted contact blocks
Easy change-out components snap in place on DIN rail
Enclosure meets UL94-VO; also available in anti-static Ex e materials
Inserts for mounting DIN rails
Available with a maximum of two entries – top and bottom for conduit fittings or cable glands
Suitable for universal mounting plates on pipes, conduit, wall or channels
Mounting dimensions data molded on back
Captive, corrosion-resistant cover screws
Built-in mounting slots for wall installation
Standard materials
Enclosure – polyamide
Kunshan Beiyuan Electric Co.,Ltd 昆山倍源电气有限公司
Eaton Crouse-Hinds Series Authorized Distributor
CEAG GHG41 explosion-protected control stations Order No.:
GHG 432 0011 R0001 GHG4320011R0001
GHG 434 1111 R0004 GHG4341111R0004
GHG 432 0011 R0003 GHG4320011R0003
GHG 432 0011 R0002 GHG4320011R0002
GHG 434 1111 R0009 GHG4341111R0009
GHG 432 0001 R0005 GHG4320001R0005
GHG 432 0001 R0015 GHG4320001R0015
GHG 432 0011 R0005 GHG4320011R0005
GHG 432 0001 R0004 GHG4320001R0004
GHG 432 0001 R0006 GHG4320001R0006
GHG 432 0011 R0009 GHG4320011R0009
GHG 434 0111 R0002 GHG4340111R0002
GHG 432 0001 R0014 GHG4320001R0014
GHG 432 0011 R0006 GHG4320011R0006
GHG 432 0001 R0003 GHG4320001R0003
GHG 432 0001 R0012 GHG4320001R0012
GHG 432 0001 R0013 GHG4320001R0013
GHG 432 0001 R0016 GHG4320001R0016
GHG 432 0001 R0017 GHG4320001R0017
GHG 432 0001 R0018 GHG4320001R0018
GHG 432 0001 R0019 GHG4320001R0019
GHG 432 0001 R0020 GHG4320001R0020
GHG 432 0011 R0008 GHG4320011R0008
GHG 434 0111 R0010 GHG4340111R0010
GHG 434 0111 R0011 GHG4340111R0011
GHG 434 1111 R0005 GHG4341111R0005
